Quick Details

  • Condition: New
  • Automatic Grade: Automatic
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Jin Ding
  • Model Number: YJ-3800
  • Voltage: AC380V/50-60HZ
  • Power(W): 10KW
  • Dimension(L*W*H): 4000*2610*1600
  • Certification: ISO 9001:2015
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas

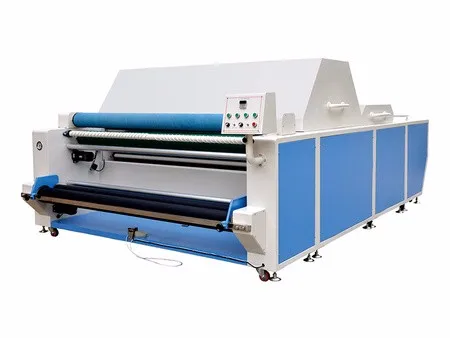

  • Name: industrial knitting textile finishing steam shrinking machine
  • Function: shrinking,drying,cooling room
  • Other function: measure,folding fabric,auto adjustable belt
  • Mainly Advantage: Improve the fabric quality and dimensional stability
  • Fabric Type: cotton,Knitting,woven,wool fabric and so on
  • Energy saving: Save about 40% than the same type of new products
  • Feature: Eliminate fabric tension
  • Working principle: WITH a certain temperature, humidity/steam and pressure
  • Output&Input fabric type: folding & rolling fabric
  • Speed,temperature: adjustable

Packaging & Delivery

Packaging Details: Inner package:stretch film
Outside package:Standard export wooden pallets
Delivery Detail: 15 days after receive the deposit
Product Description

forming machine


Shrinking (Eliminate tension)

Pre-heating and Drying and Cooling

Save 40% energy

Measuring and Relaxing fabric

Improve the fabric quality


Please be patient to read the following description!!!

Introduction& Working principle:

(1)Fabric shrinking and forming machine is working in the conditions of a certain temperature, humidity/steam and pressure , use the fabric own nature, the elastic shrinkage deformation and fiber penetration and swelling principle to eliminate the potential shrinkage of clothing fabrics.

(2)Our machine have pre heating room,steam room,drying room and cooling room,after shrinkage can use in cutting machine directly.

(3)The fabric pre shrinking machine can be used for cotton, Knitting,woven,chemical fiber, blended fabrics, wool fabric.

Please be patient to read the following description!!!

Application /Advantages of shrinkage:

(1)Stabilize the fabric shrinkage,reduce Reduce shrinkage during the sewing and ironing process,
no longer with phenomenon of pinhole and shorten,also without deformation when sew the transverse cloth together with longitudinal cloth.

(2)Improve the fabric quality and dimensional stability.

(3) Improve the physical properties of fabrics or to protect the surface quality of fabrics.

(4) The fabric size is stable after Shrinkage , feel good, and once again ironing is not easy to shrink, this process let the fabric have best / better quality and added value is increased.

(5) Improve the sewing performance, upgrades fabric quality and improve the value of clothing products.

(6) The shrinking machine is a modern machine that uses with CAD and CAM automatic equipment.

Technical parameter of YJ-3800
Model
 YJ-3800
Table Dimension(L*W*H,mm)
4000*2610*1600
Voltage
AC380V50-60Hz
Power
10KW
Steam pressure
4-7kg/cm
Steam consumption
100kg/h
Speed
1-12m/min
Width of  fabric
2100 mm or customized
Main Function
preheating,shrinking,drying and cooling
Digital counter
With
Edge controller
Yes,Simple type
Fabric Max diameter
300 mm

Function chamber:



One steam shrinking chamber+one drying chamber+one cooling chamber

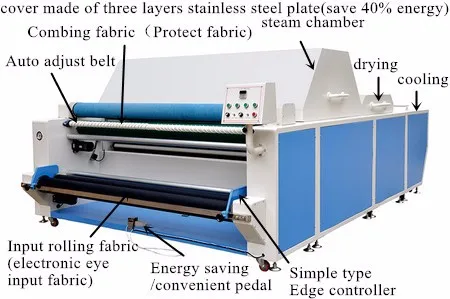

Main Feature
1.The steam room made of three layers of stainless steel plate has good heat preservation effect, which can ensure the using effect of steam .
2.Steam cycle design, it not only reduces the discharge of waste gas and water, but also reinforces the fabric preshrinking effect, thus reducing the consumption of steam and electricity energy. (Save about 40% than the same type of new products)
3.Steam chambers, preshrinking speed is faster and the effect is more stable
4.The fabric can be double shrinking by rollback freely.
5.Automatically combing fabric and protect cloth.makes high elastic cloth to avoid be elongated or transformed.
6.Use electronic eye automatic input rolling fabric,output folding fabric.
7.Automatic adjustable belt
8.Accurate measurement of length, equipped with intelligent meter counter
9.The steam flow and temperature and speed can be adjusted according to different fabrics.
10.Can choose equipped with the humidification device of atomized water for the pure cotton, woolen or with pulp materials, it makes a better fabric preshrinking effect and more comfortable hand feel.

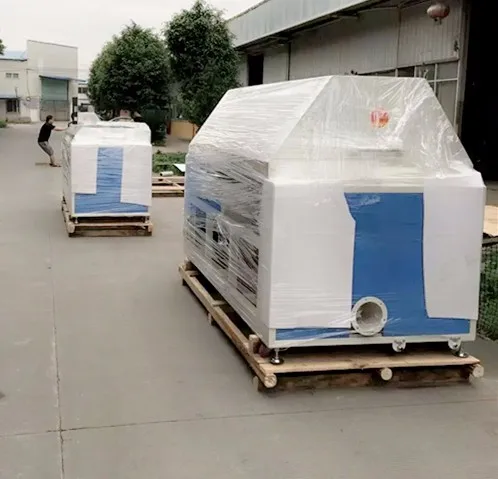

Packing & Delivery

Inner package:

stretch film

Outside package:

wooden cases

Delivery Time:

7-15 days after receipt the deposit

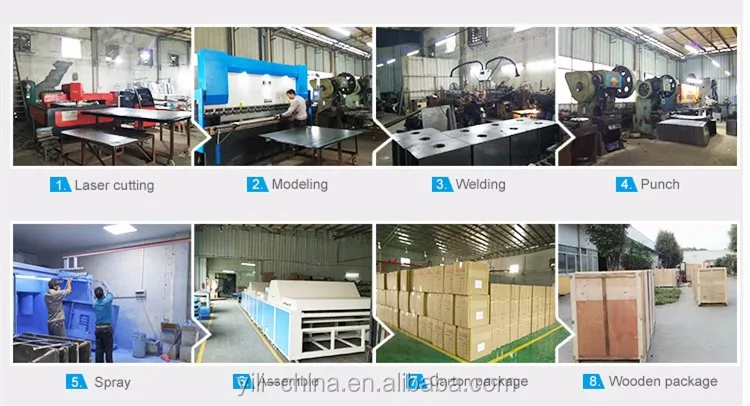

Production process

Production Process
1.Laser cutting              2.Modeling            3. Welding        4.Punch             5. Spray
6.Cleaning                      7.Assemble            8.Test                  9.Package


Remark:

Offer one year quality warranty,install and training for free.


Shipping terms: EXW/FOB/ CFR/CIF/DDU Shenzhen or Guangzhou

Payment term: Support T/T , 30% as deposit and balance should be paid before shipment.

Shipping term:About 7-15 days after receipt the deposit,but it also according to the quantity.

Why Choose Us

Why Choose Us?

1)We are the manufacture of garment machinery ,we own a professional team .

Reduce your cost & Raise income/profits.

2)Over 24 years of professional manufacturing experiences.

Improve your quality.

3)Our main products are before sewing cloth processing and seam finishing machinery, which have more than 100 series. Among them, blowing ironing machine and iron are exported to Hong Kong and Southeast Asia markets, and they enjoy great popularity among customers.

Increase your clients.

4)We are to the purpose of “Integrity based, Customer highest, Service first”and provide the most professional services for the customers.

Ensure professional services

How To Contact Us

Zhaoqing Yili Garment Machinery Co.Ltd

Jessica Mo
Mobile:+86-13827530181

Skype:8613827530181

Wechat:15622787536

QQ:974391172
WhatsApp:008613827530181
E-mail: jessicamomo2016@outlook. com
Address: Jindu industry part, Gaoyao District, Zhaoqing City, Guangdong, China.
